Sophos

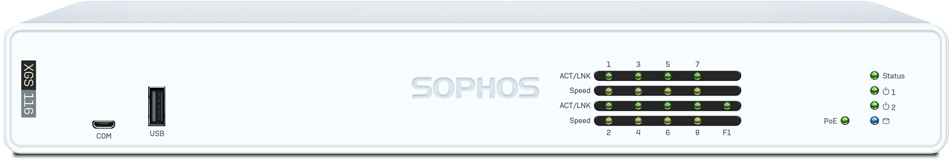

Sophos XGS 116 Next-Gen Firewall (US Power Cord)

Sophos XGS 116 Next-Gen Firewall (US Power Cord)

Regular price $1,039.04
Regular price Sale price $1,039.04
Sale Sold out
Shipping calculated at checkout.

Powerful Protection and Performance

Sophos Firewall and the XGS Series appliances with dedicated Xstream Flow Processors enable the ultimate in application acceleration, high-performance TLS inspection, and powerful threat protection.



XGS 116 Featured Specifications

Firewall Throughput: 7,700 Mbps
Firewall IMIX: 3,500 Mbps
IPS Throughput: 2,000 Mbps
Threat Protection Throughput:  685 Mbps
Ethernet interfaces (fixed): 8 GbE copper
Power-over-Ethernet (fixed): 1 x GbE 803.2at (30W max.)

Protection Bundle Included: None. Base Firewall Features Only



Sophos Next-Generation Firewalls


Sophos XGS Series Appliances

All XGS Series firewall appliances are built upon a dual-processor architecture, combining a high-performance, multi-core CPU with a dedicated Xstream Flow Processor for targeted acceleration at the hardware level. This gives you all the flexibility and adaptability of an x86 based firewall plus a significant performance boost over legacy firewall designs



TLS 1.3 Inspection

According to the latest statistics, approximately 90% of web traffic is encrypted, making it invisible to most firewalls. An increasing amount of malware and potentially unwanted apps exploit the fact that organizations are simply not using SSL inspection. Network administrators' main fears are that SSL inspection will have a performance impact or cause something to break, impacting the user experience.


Sophos Firewall removes the blind spots caused by traffic by allowing you to use SSL inspection while maintaining performance efficiency.


Deep Packet Inspection

We believe you should never have to decide between security and performance. Sophos Firewall includes a highspeed deep packet inspection (DPI) engine to scan your traffic for threats without a proxy slowing down the process. The firewall stack can completely offload the processing to the DPI engine, significantly reducing latency and so improving overall efficiency.


Sophos Firewall blocks the latest ransomware and breaches with high-performance streaming DPI including next-gen IPS, web protection, and app control, as well as deep learning and sandboxing powered by SophosLabs Intelix.


Application Acceleration

A significant portion of your network traffic is important business application traffic destined for branch offices, remote users, or cloud application servers. This trusted traffic, which needs no additional security scanning for threats or malware, can be intelligently directed to the FastPath, reducing latency, and optimizing overall performance. This provides added capacity and headroom for traffic that does need deep packet inspection.


Sophos Firewall accelerates your SaaS, SD-WAN, and cloud traffic such as VoIP, video, and other trusted applications automatically or via your own policies - putting them on



Base Firewall Features

Networking and SD-WAN: Wireless, SD-WAN, Application Aware Routing, Traffic Shaping

Protection and Performance: Xstream Architecture with Network Flow FastPath, TLS 1.3 Inspection, Deep-Packet Inspection

VPN: IPsec/SSL Site-to-Site and Remote Access VPN (unlimited), Sophos SD-RED Site-to-Site VPN

Reporting: Historical on-box logging and reporting, Sophos Central cloud reporting (seven-day data retention)





XGS 116 Detailed Specifications

Performance

XGS 116(w)

Firewall throughput

7,700 Mbps

Firewall IMIX

3,500 Mbps

Firewall Latency (64 byte UDP)

8 μs

IPS throughput

2,000 Mbps

Threat Protection throughput

685 Mbps

NGFW

2,000 Mbps

Concurrent connections

1,600,000

New connections/sec

61,500

IPsec VPN throughput

1,100 Mbps

Xstream SSL/TLS Inspection

650 Mbps

Xstream SSL/TLS Concurrent connections

8,192

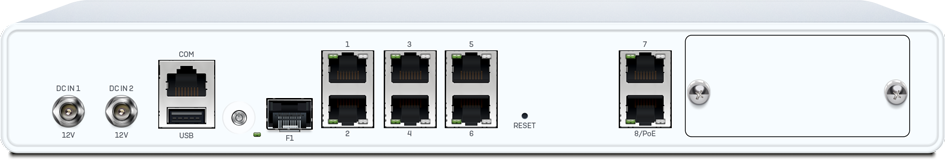

Physical interfaces

Storage

(local quarantine/logs)

Integrated 64 GB SSD

Ethernet interfaces (fixed)

8 GbE copper1 GbE SFP

* SFP transceivers sold separately

Power-over-Ethernet (fixed)

1 x GbE

803.2at (30W max.)

Management ports

1 x COM RJ45

1 x Micro-USB (cable incl.)

Other I/O ports

1 x USB 2.0 (front)

1 x USB 3.0 (rear)

Number of expansion slots

1

Optional add-on connectivity

SFP DSL module (VDSL2)3G/4G module

Second Wi-Fi radio (XGS 116w only)

SFP transceivers


Physical specifications

Mounting

Rackmount kit available (to be ordered separately)

Dimensions

Width x Height x Depth

320 x 44 x 213 mm

Weight

2.2 kg/4.85 lbs (unpacked)

4.2 kg/9.26 lbs (packed)

(w-model minimally higher)



Environment

Power supply

External auto-ranging AC-DC

100-240VAC, 2.5A@50-60 Hz

12VDC, 12.5A, 150W

Optional second redundant power supply

Power consumption

116: 28 W/96 BTU/hr (idle)

116w: 30 W/102 BTU/hr (idle)

116: 57 W/195 BTU/hr (max.)

116w: 60 W/205 BTU/hr (max.)

PoE addition enabled

38 W/130 BTU/hr (max.)

Operating temperature

0°C to 40°C (operating)

-20°C to +70°C (storage)

Humidity

10% to 90%, non-condensing



Product Certifications

Certifications

CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, NOM, Anatel
