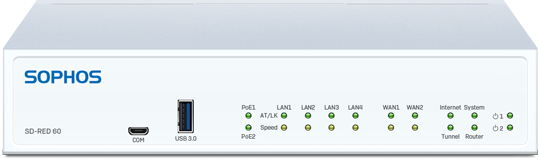

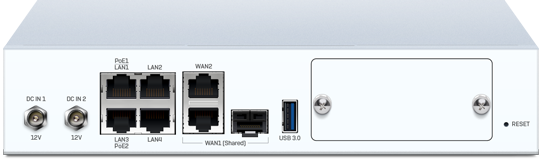

Sophos SD-RED 60 Rev.1 Appliance (US power supply)

Sophos SD-RED 60 Rev.1 Appliance (US power supply)

Regular price $773.50 USD
Regular price Sale price $773.50 USD
Sale Sold out
Shipping calculated at checkout.

SD-RED 60

Sophos SD-RED: Empowering your SD-WAN strategy

Sophos has long been a pioneer in providing an easy-to-use, secure way to connect branch offices and other remote locations. Sophos Firewall includes a number of SD-WAN features to help you to accelerate application performance and get better visibility into network health to ensure that your remote locations enjoy the same performance as your main office.


SD-RED devices are built on the latest enterprise-class, high-speed networking platforms. They work with your Sophos Firewall whether you’ve deployed as hardware, software or in the public cloud. Sophos’s full range of Sophos Wireless Access Points are also compatible with Sophos SD-RED. You can use Sophos SD-RED with just the Base License included in your appliance purchase, however, you will need an active Network Protection subscription for management.


SD-RED 60 Featured Specifications:


Maximum throughput: 850 Mbps

LAN interfaces: 4 x 10/100/1000 Base-TX (1 GbE copper)

WAN interfaces: 2 x 10/100/1000 Base-TX (WAN1 shared port with SFP)

SFP interfaces: 1x SFP fiber (shared port with WAN1)

Power-over-Ethernet ports: 2 PoE ports (total power 30W)



SD-RED 60 Detailed Specifications

Model


SD-RED 60

Capacity

Maximum throughput


850 Mbps

Physical interfaces (Built-in)

LAN interfaces


4 x 10/100/1000 Base-TX (1 GbE copper)

WAN interfaces


2 x 10/100/1000 Base-TX (WAN1 shared port with SFP)

SFP interfaces


1x SFP fiber (shared port with WAN1)

Power-over-Ethernet ports


2 PoE ports (total power 30W)

USB ports


2 x USB 3.0 (front and rear)

COM ports


1 x micro-USB

Optional Connectivity

Modular bay


1 (for use with optional Wi-Fi OR 4G/LTE card)

Optional Wi-Fi module


802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable2 x 2 MIMO 2 antennas

Optional 3G/4G LTE module


MC7430/MC7455 Sierra Wireless Card

Optional VDSL modem


Optional SFP modem (support coming in future release)

Physical Specifications

Dimensions

Width x Height x Depth


225 x 44 x 150 mm 8.86 x 1.73 x 5.91 inches

Weight


1.0 kg/2.2 kg (2.2 lbs/4.85 lbs) Unpacked/Packed

Power supply adapter


AC Input: 110-240VAC @50-60 HzDC Output: 12V +/- 10%, 6.95A, 75W

Power redundancy support


Yes, optional second power supply

Power consumption


11.88W, 40.536 BTU/h (idle)25.33W, 86.429 BTU/h (full load without PoE)62.48W, 213.190 BTU/h (full load with PoE)

Temperature (operational)


0°C to 40°C (32°F to 104°F)

Temperature (storage)


-20°C to 70°C (-4°F to 158°F)

Humidity


10% to 90%, non-condensing

Safety Regulations

Certifications (safety, EMC, radio)


CE/FCC/IC/RCM/VCCI/CB/UL/CCC/KC/ANATEL
